PCB LABEL

Model NO.: PCB LABEL
Delivery: FOB

Quantity:

Product Description

BRAND：	CRYSTAL CODE	CODE：	CCESD002PI
INDUSTRIAL：	INDUSTER,AUTO	SIZE：	CUSTOMIZED
COLOUR：	CMYK	MATERIAL：	PET,PP,PVC

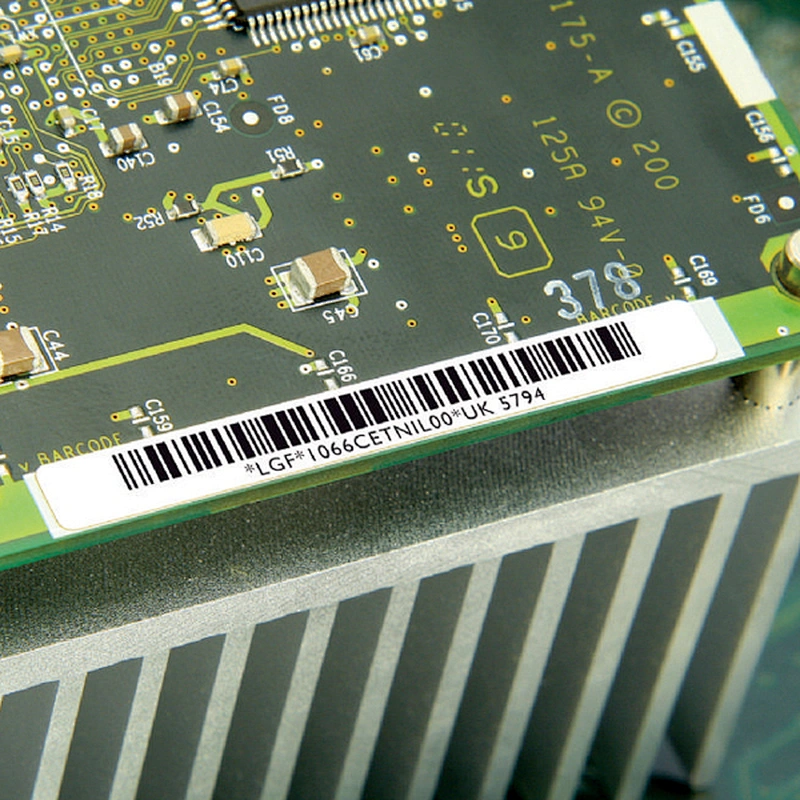

Crystal Code offer an extensive range of durable, printable films electronic sticker suitable for electronic components and appliances. Applications include variable information labels, branding, warning and identification, manufacturing tracking identification and tamper-evident materials to identify fraudulent use or opening of goods or packaging. All these labelstocks offer excellent printed image quality, dimensional stability, durability and heat resistance and are designed to remain firmly affixed and clearly legible to the end of the product’s life.

We continually research and develop new labelling solutions for the electronic and appliance industries. This has led to innovations such as a recyclable range, which uses a plastic film face made of the same material as the container. The advantage of this is that both component and label can be recycled in the same process, without removing the label first.

The range offers four different face materials: polyimide (PI); polypropylene (PP); polyester (PET) and acrylonitrile butadiene styrene (ABS). These face materials can be combined with our range of adhesives to meet widely varying specifications. For demanding applications where greater abrasion or chemical resistance is required, a choice of over-laminating films is also available.

Antistatic Labels technical data
Part No.	Face Material	PSA Thickness	Surface Resistance	Peel Voltages	Static Decay Label Surface	Temperature Range antistatic properties
CCESD001PI	Polyimide	1 mil	>10⁸ and<10¹¹	< 100 v	< 2.0 seconds	-40°to 325°C
CCESD002PI	Polyimide	2 mil	>10⁸ and<10¹¹	< 100 v	< 2.0 seconds	-40°to 325°C
CCESD001PET	Polyester	1 mil	>10⁷ and<10¹¹	< 100 v	< 2.0 seconds	-40°to 204°C
CCESD002PET	Polyester	2 mil	>10⁷ and<10¹¹	< 100 v	< 2.0 seconds	-40°to 204°C

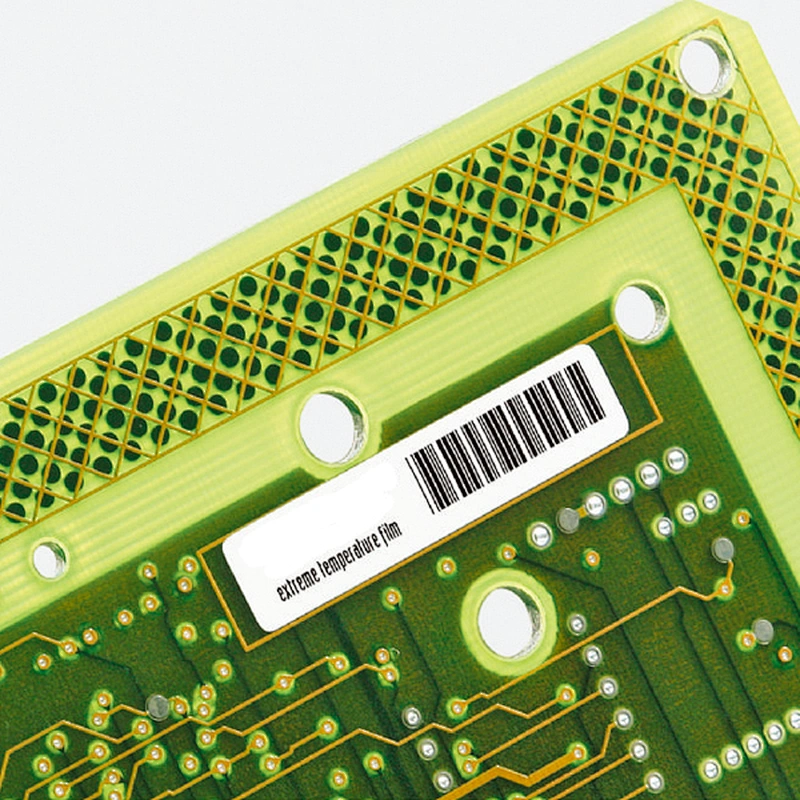

For most of the 2 mil high temperature polyimide products there is a cost effective 1 mil alternative that maintains the same durability standards at a lower price. All materials are thermal transfer printable， has excellent chemical and abrasion resistance and have proven to be successful in the hostile environments in the PCB manufacturing process. Our 1 & 2 mil materials use a permanent acrylic adhesive and are available in a wide variety of colors & finishes. Silicone adhesive is available for applications were extreme heat exposure is a factor.
