300℃ STEEL TAG
300℃ STEEL TAG
300℃ STEEL TAG
300℃ STEEL TAG
300℃ STEEL TAG
300℃ STEEL TAG
300℃ STEEL TAG
300℃ STEEL TAG
300℃ STEEL TAG

300℃ STEEL TAG

Model NO.
300℃ STEEL TAG
Delivery
FOB
Quantity:
BRAND:CRYSTAL CODECODE:CCS-H004
INDUSTRIAL:IRON&STEEL INDUSTRIALSIZE:CUSTOMIZED
COLOUR:CMYKMATERIAL:PI

This is a revolutionary range of materials which ensures reliable identification for metal producers

and re-processors. Specialist adhesive properties enable variable data to be added to production

lines via manual or automatic application. Suitable for use on steel, for example on slabs, blooms

, bars, coils (hot), billets and wires, and for aluminium applications including sows & pigs, coils

(hot and cold), ingots and billets.

All products are designed to enable barcode identification for automatic tracking and management

of materials throughout the supply chain (improving efficiency and safety). They will also withstand

harsh outdoor environments and chemical exposure.

The High temperature label span three categories:

1) Labels being applied at ambient temperature and then exposed to extreme heat. Uses include

metals that are subjected to a secondary process – for example homogenising, annealing or baking.

2) Labels being applied at extreme temperatures (up to 800°C), made possible through proprietary

heat activated adhesive. This eliminates the need to wait until a metal has cooled to identify the

goods because hot, direct application barcode labels can be applied immediately after the casting

process.

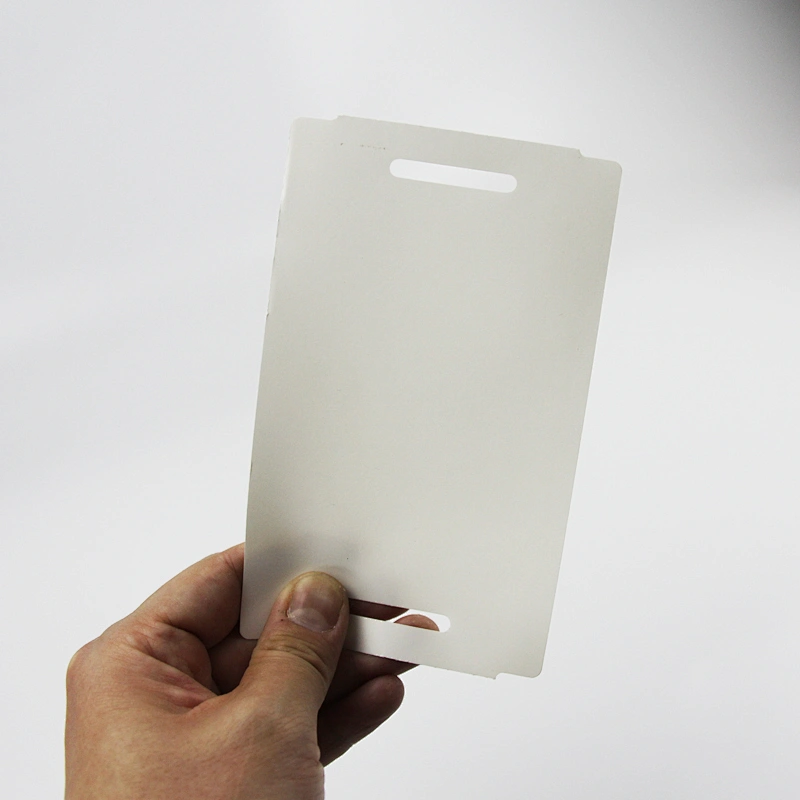

3) Tag materials (mechanically attached to goods). Applications are as (1) above and we can also

provide appropriate tags for application in reductive atmospheres or chemical processing.

Product  No.CCHT139
FacestockPolyimide  Film(PI)
Thickness0.139  mm
AdhesiveNo
LinerMatte  kraft paper
   80 g/m2, 0.1065mm
ColorWhite, Green, Pink,  Black, Blue
Serice
   Temperature
600°C short term
   350°C long term
Application
   Temperature
10°C
PrintingFull  Color
FeaturesSteel  maker on slabs, blooms, coils (hot), billets and wires, and for aluminium  applications including
   sows & pigs, coils (hot and cold), ingots and billets.
SizeCustomized

2.jpg                                     5.jpg

1.jpg                                     4.jpg
