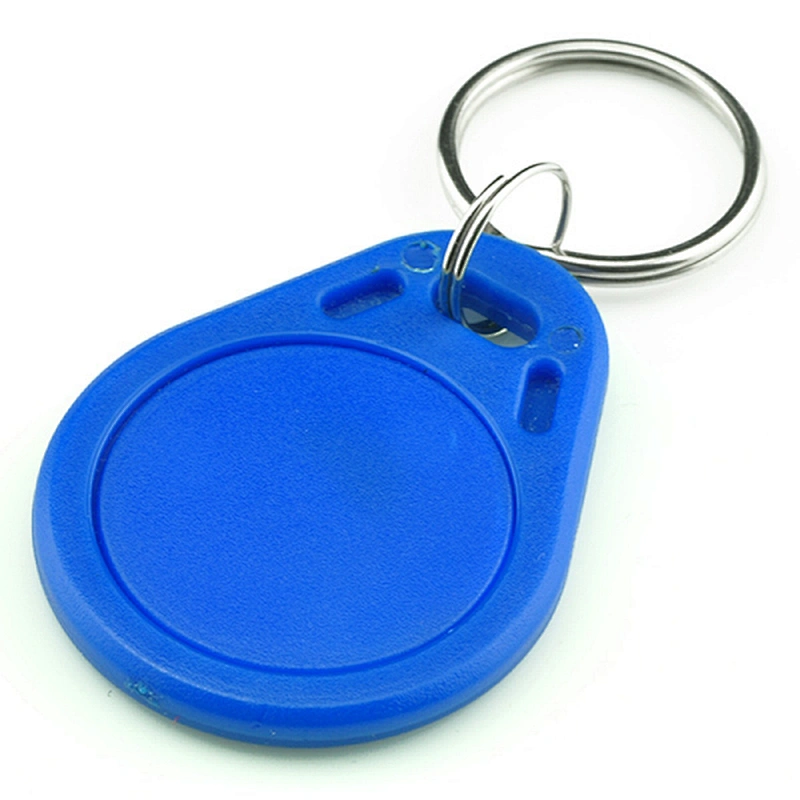

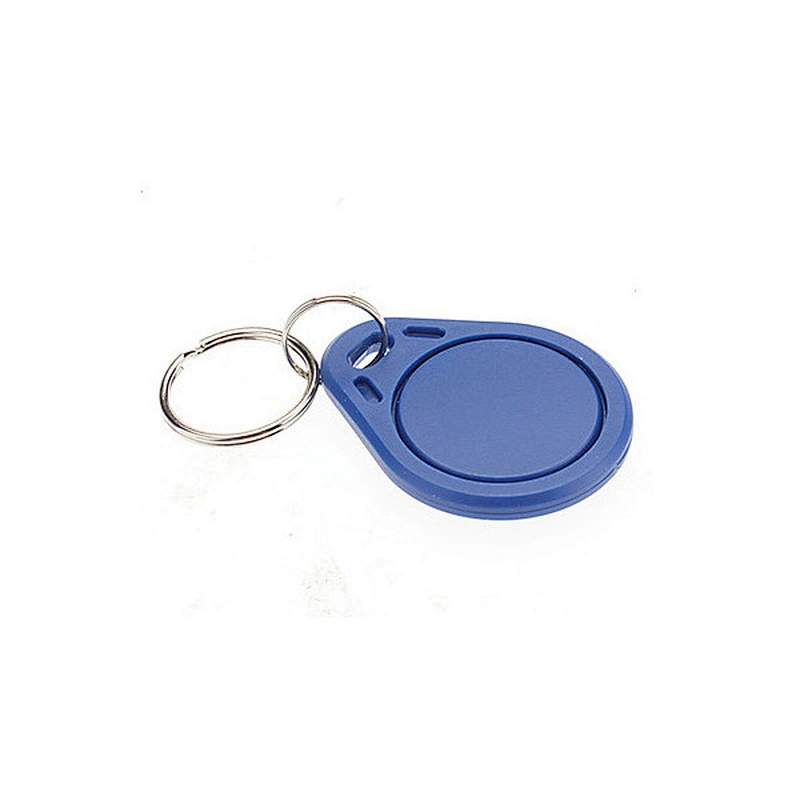

RFID KEY TAG2

Model NO.: RFID KEY TAG2
Delivery: FOB

Quantity:

Product Description

BRAND：	CRYSTAL CODE	CODE：	CCBHT502
INDUSTRIAL：	ELECTRONICS	SIZE：	CUSTOMIZED
COLOUR：	CMYK	MATERIAL：	PET,PP,PVC

I．Product Introduction
This product is a high-frequency electronic labels that use polyphenylenesulfide (PPS) material package, which is designed for a special occasion suchas dry-clean, so called laundry label. Polyphenylene sulfide (PPS) is astructurally stable crystalline resin plastic of high rigidity, which has hightemperature, non-toxic, flame resistance, chemical resistance, good insulationperformance, etc. Available in rigid, durable mechanical products; requiringheat, the fire electrical products; also available in terms of requirements forchemical devices of corrosion resistance. Especially at high temperatures, highhumidity and high frequency, it stillhas excellent electrical properties. PPS plastic shell, after using electronictags encapsulated ultrasonic sealing, has high temperature, flame resistance,chemical resistance, high rigidity wear-resistant, waterproof and many otheradvantages, can be used in high temperature, high humidity, wear and corrosionresistance in harsh environmental applications, such as: laundry, car enginerepair identification, chemical raw materials and many electronic tags to trackapplications.
Features:
I. operating distance:0~150px(dependenton the geometry of the antenna and reader power)
II. OperatingFrequency: 13.56 MHz (industrial safety, worldwide license free use)
III. Standard protocol: ISO15693
IV. True anti-collision: Allows multiple tagssimultaneously read
V. More than 10 years of data retention
VI. Erase cycle more than thousandsof times
VII. Unique identifier (serialnumber) for each chip has not changed, to ensure the uniqueness of each label

II.Technicalparameters

operation code	HT502
Operating Frequency	13.56MHz
Communicating protocol	ISO 15693
Chip Type	NXP ICODE II SLIX
Reading distance	0~150px
Reading time	20~30ms
Working temperature	-20℃~90℃
Storage temperature	25 ℃ or +120 ℃ / 1000 hours;+160℃/35hours;+220℃/30second
Chemical properties	Flooding test: 20 ℃, 24 hours, and the depth of 2m (does not affect the read and write performance). Chemical tests: bleach / caustic soda (20 ℃ / 10 hours does not affect the appearance and read and write performance)
Mechanical properties	Balanced Pressure: 20Mpa / 5 min (high rigidity, the appearance of no cracked or broken). Axial pressure: 1Kpa / 10 seconds (the appearance of no cracked or broken). Vibration test: The vibration frequency of 34Hz, vibration strength 6mm / 2 hours (the appearance of no cracked or broken)
Endurance	>100,000times
Data retention	>10years
Dimensions	D22 × 2.5mm (with two holes), D30 × 4.8mm (hole with 8 characters) or customized
Packaging Materials	PPS
Weight	7g
Installation	Stapling or engaging
Feature:	Water-proof, High temperature, flame resistance, chemical resistance
Applications:	Dry cleaning management Professional suite laundry management, car engine repair identification
Price terms:	We can provide FOB /EXW/CIF price.
Price terms:	Payment term: pay by T/T or Western Union. 50% deposit of the total payment before bulk production. (We will take photos or show you the goods by video after finish the goods to make sure quality and quantity are not an issue to stop our business relationship.)
Delivery time:	within 10-15 days after the receipt of 50% deposit of the total payment.
Delivery way:	By express(DHL, Fedex, UPS, TNT and EMS) ,by sea or air
Packaging:(Standard Size)	White Box: 10 rolls /BOX, Our Carton: 25Boxes/CTN.Or on demand.
Sample:	Free sample based on your order quantity
Standard size card weights (only for reference)	10 rolls(1 box) 20 KG
